Material: Low carbon steel c1022a.
Driver: #2
Head: Bugle head.
Thread:Fine thread.
Point: Self-drilling.
Surface Treatment: Black phosphated, zinc plated.
Diameter: #6(3.5mm), #7(3.9mm), #8(4.2mm), #10(4.8mm).
Length: 13mm -100mm
Used for connecting 0.8mm-1.2mm thickness steel studs.
Self drilling drywall screws are mainly used for fastening gypsum boards to metal studs with a thickness of 0.8–1.2mm. With their drill-shaped tail, there is no need to pre-drill during use. This self-drilling design reduces resistance when penetrating steel, allowing for quick installation, saving working time, and improving efficiency.
Common wire diameters include 3.5mm (#6) and 3.9mm (#7), with lengths ranging from 16mm to 70mm. The hot-selling size is 3.5x25mm (#6x1”). Other popular sizes include 50mm plasterboard screws, which are widely used for thicker wall assemblies. As self drilling plasterboard screws, they are ideal for efficient, one-step fastening of board to metal.
If you are interested in our products, feel free to contact us for purchasing. We are happy to provide free samples for quality testing.

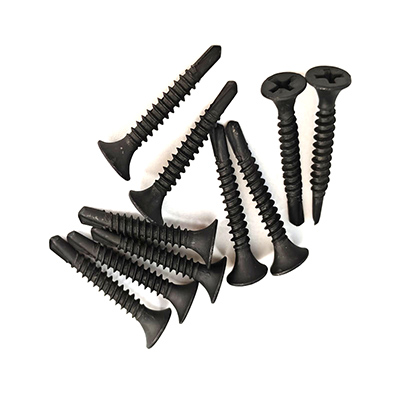

Depending on the application environment, we offer different surface treatments, including black phosphate and zinc plating. Our black drywall screws are especially popular for their corrosion resistance and clean appearance.
| #6x1/2" | #7x5/8" | #8x1/2" | #8x2-9/16" | #10x5/8" | #10x2-3/4" |
| #6x5/8" | #7x13/16" | #8x5/8" | #8x2-3/4" | #10x3/4" | #10x2-15/16" |
| #6x3/4" | #7x1" | #8x3/4" | #8x2-15/16" | #10x1" | #10x3-1/8" |
| #6x1" | #7x1-1/4" | #8x1" | #8x3-1/8" | #10x1-1/4" | #10x3-1/2" |
| #6x1-1/4" | #7x1-3/8" | #8x1-1/4" | #8x3-1/2" | #10x1-1/2" | #10x4" |
| #6x1-1/2" | #7x2" | #8x1-1/2" | #8x4" | #10x2" | |
| #6x2" | #7x2-9/16" | #8x2" | #10x2-3/8" | ||
| #6x2-3/8" | #7x2-15/16" | #8x2-3/8" | #10x2-9/16" |
