wafer screw
wafer screw wafer screw wafer screw wafer screw wafer screw

wafer screw

Product Tags :
Product Attributes :

Material: Low carbon steel c1022a.
Driver: #2
Head: Truss head
Point: Self-tapping.
Surface Treatment: Black phosphated, zinc plated. grey phosphate
Diameter: #8(4.2mm), #10(4.8mm).
Length: 13mm -50mm

Product Description

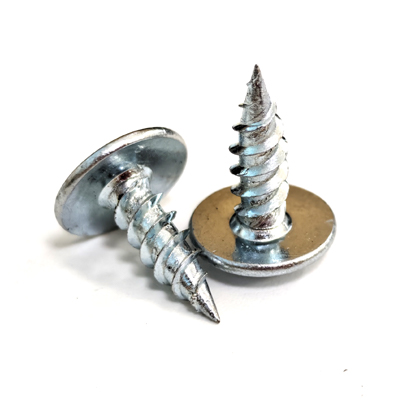

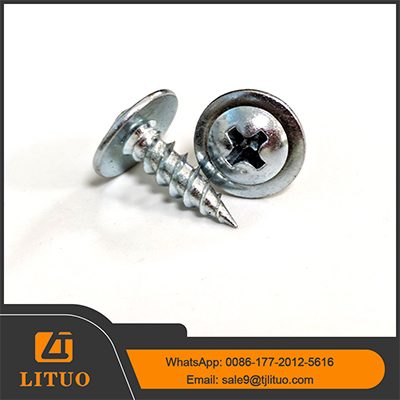

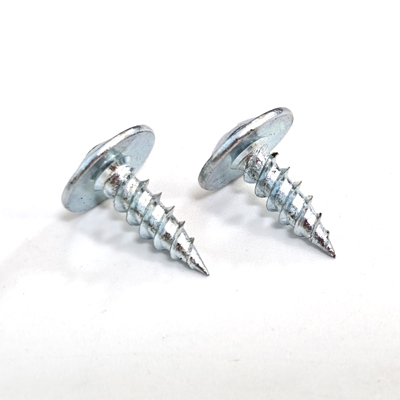

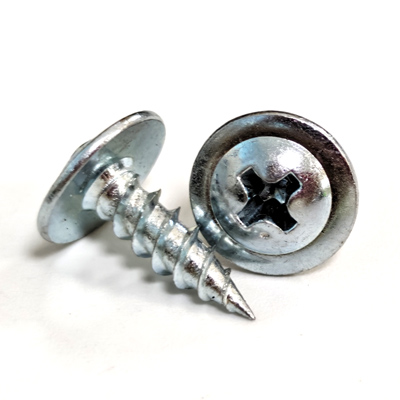

Phillips wafer head screws with blue-white zinc plating and sharp point are mainly used for fastening thin metal studs, aluminum sheets, and gypsum boards. The wide wafer head provides a larger contact area, helping to focus the driving force toward the screw tip. This design allows the screw to quickly penetrate materials without the need for pre-drilling, significantly improving installation efficiency.

Surface finishes are available in electroplated blue-white zinc, grey phosphate, and black phosphate to meet different environmental requirements.

We offer a full range of specifications, including 8 x 1/2 wafer head screws, 3/4 wafer head screws, 10g wafer head screws, 1/2 wafer head screws, and 1-1/4 wafer head screws, suitable for a variety of fastening needs.

Feel free to contact us for any inquiries — free samples are available for quality testing upon request.
